SHENYANG(SMTCL) High precision Slant bed lathe T5Q Series

Product description:

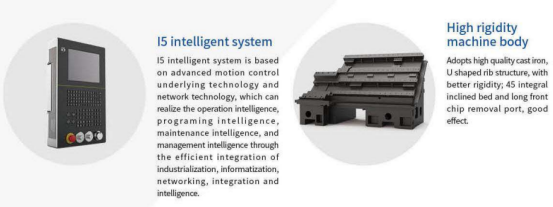

T5Q series horizontal CNC lathe, which combines the intelligent control technique and advanced manufacturing technique, has high precision, high efficiency, and high cutting rigidity. It utilizes finite element analysis software for optimization and design, analyzes the distribution of stress points, reduces deformation of the components, and realizes the optimal structure of the whole machine. The main casting components were made of high strength cast iron, which can guarantee the minimized vibration during turning and at the same time improve the machining precision and cutting stability.

Send email to us Download as PDF

Product Detail

Product Tags

Specification

Item	Unit	T5.2- 500Q	T5.2-1000Q
Machining range
Max turning diameter	mm	Φ360	Φ360
Max turning length	mm	500	1000
Max swing diameter over bed	mm	Φ560	Φ560
Max swing diameter over slide	mm	Φ350	Φ350

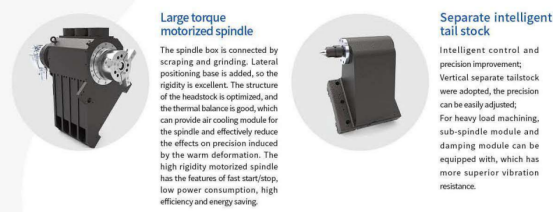

Spindle
Spindle nose type		A2-6	A2-6
Diameter of front bearing	mm	110	110
The taper of front end of spindle, taper hole		1:20;Φ80	1:20;Φ80
Spindle hole diameter	mm	Φ67	Φ67
Max diameter of bar	mm	Φ50	Φ50
Diameter of chuck	inch	8	8
Max spindle speed	r/min	4500	4500
Spindle rated torque	Nm	144 (2000r/min)	144 (2000r/min)
Max spindle torque	Nm	176 (2000r/min)	176(2000r/min)
Main motor output power Continuous/30 minutes	kW	30/37	30/37
Axes
X/Z axis rapid traverse	m/min	30	30
X axis travel	mm	200	200
Z axis travel	mm	560	1050

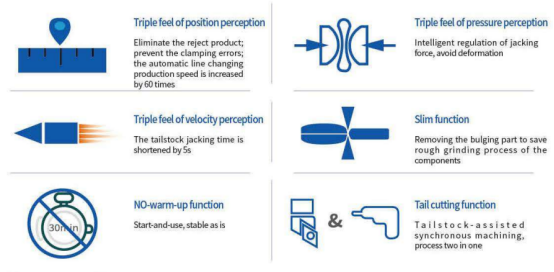

Tailstock
Tailstock body travel	mm	500 (Servo drive)	900 (Saddle draging)
Tailstock taper	Morse	MT-5	MT-4

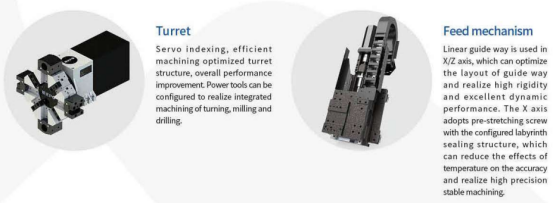

Turret
Turret mode		Horizontal servo turret with 8-position	Horizontal servo turret with 8-position
Center height of turret	mm	80	80
Repeatability of turret indexing	Sec.	±1.6	±1.6
Choosing too at the nearest distance	-	Yes	Yes
Face end tool holder (25 X 25)	-	1	1
Boring tool holder (Φ40)	-	3	3
Reducer (032/025/020)	mm	1 each	1 each
Others
The height from spindle center to the bottom of the bed	mm	1015	1015
Machine net weight	kg	4200	4750
Power capacity	kVA	55	55
Overall machine dimension (L×W×H)	mm	2600×1890×1900	3570×1890×1900

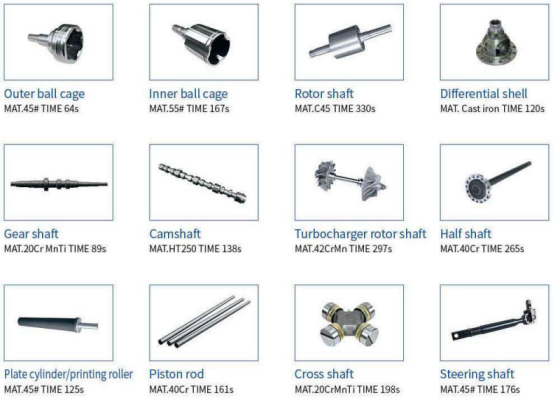

Optional: Control system,Guide-way,Spindle,Turret,Chip removal system,Tailstock,Chunk,Hydraulic station,Tool detection , Automatic line configuration,Scale,Water gun,Gas gun
