China CY-S2040B High Speed Precision Lathe Manufacturers – YISHUI Slant Bed CNC Pipe Threading Lathe QKY1322 – Maiouke Detail:

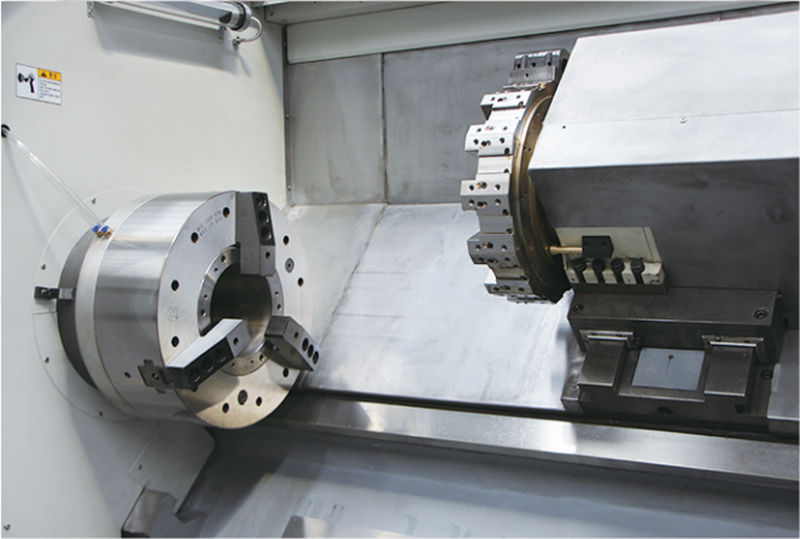

product-description2

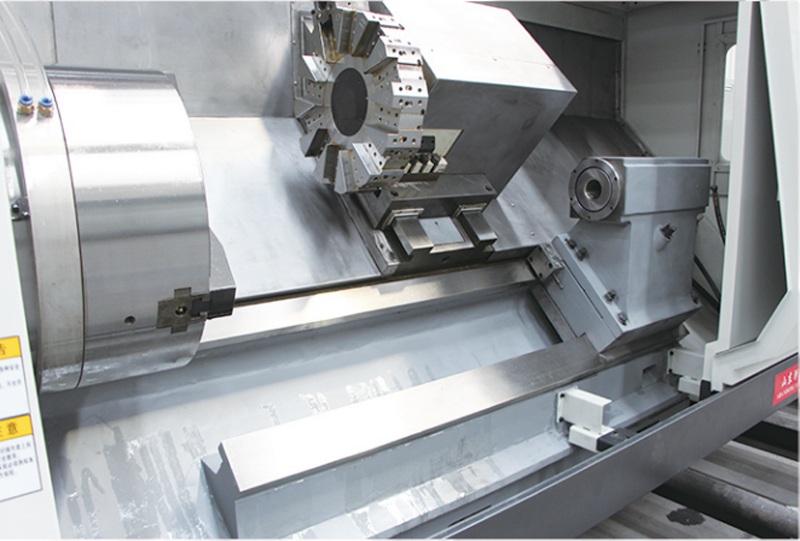

product-description3

Specification

Item

Unit

QKY1322

Capacity

Swing over bed

mm

680

Max turning diameter

mm

600

Swing over cross slide

mm

450

Distance between centers

mm

920

Slant bed layout angle

°

45

Spindle

Spindle bore

mm

225

Spindle nose type

-

A2-15

Bar material through

-

220

Spindle speed range

rpm

550

Turret

Turret/tool post

-

Hydraulic turret 8 position

Tool shank size

mm

32×32

Feed

X axis travel

mm

350

Z axis travel

mm

1140

X axis rapid traverse

mm/min

4000

Z axis rapid traverse

mm/min

6000

Tailstock

Tailstock quill diameter

mm

140

Tailstock quill taper

-

MT6

Tailstock quill travel

mm

200

Motor

Main spindle motor

kW

22

Coolant pump motor

kW

0.37

Dimension

Width×Height

mm

2000×2200

Length (chip conveyor included)

mm

6600

Weight

Net weight

T

12.0

Characteristic

●Big spindle bore and double chuck to ensure process big diameter pipe.
●Double pneumatic chucks ensure hold workpiece stable and efficiency.
●One-piece bed adopts high strength iron to ensure rigidity and precision.
●Ultrasonic frequency quenched guide-ways ensure good wear-resistance.
●Carriage and guide way contact surface use Turcite B to maintain accuracy.

Stander Configuration

1. Siemens controller
2. Hydraulic turret
3. Pneumatic chuck
4. Hydraulic tailstock

Optional Configuration

1. Fanuc or other brand CNC controller
2. Power turret
3. Power tools
