China Cy6150b Lathe Manufacturers – SHENYANG(SMTCL) CAK 36/40/50/63 Series CNC Lathe – Maiouke Detail:

Specification

Item

Unit

CAK3635j

CAK4065

CAK63

Max parts length

mm

400

750

1000

Max cutting length

mm

350

650

850

Max swing diameter over bed

mm

Φ400

Φ400

Φ630

Max cutting diameter over slide

mm

Φ180

Φ200

Φ350

Max cutting diameter

mm

Φ360

Φ400

Φ630

Spindle nose type

-

A26

A16

A2-11

Chuck diameter

mm

Φ200

Φ250

Φ315

Spindle bore

mm

Φ53

Φ53

Φ104

Spindle speed grade

-

Stepless

Stepless

Hydralic 4 steps less in each

Spindle speed range

r/min

100-3000

100-2400

17-1000

Main motor power

ke

3.7(Main servo motor)

5.5(Main servo motor)

11(Main servo motor)

Tailstock quill diameter

mm

Φ60

Φ60

Φ125

Tailstock quill travel

mm

140

140

250

Turret type

-

Vertical 4-postion

Vertical 4-postion

Vertical 4-postion

Tool shank size

mm

□20×20

□20×20

□32×32

X/Z axis fast travel

m/min

6/12

6/12

6/10

Machining accuracy

-

IT6~IT7

IT6~IT7

IT6~IT7

Machine weight

kg

1860

1860

5200

Overall dimension

mm

1840×1500×1500

2350×1500×1580

3410×2010×1780

Characteristic

●Nice appearance – Fluent and easy clean
●Powerful heart – Effective and stable
●Strong body – Heavy and strong
●Smart brain – Customized controller
●33Hz high efficiency-servo motor low energy-big torque improve efficiency
●Fast travel improved
●Surface quality improved
●Absolute encoder redeced fault
●Shorter accelerate and decelerate time
●Parameter change visual fault diagnosis

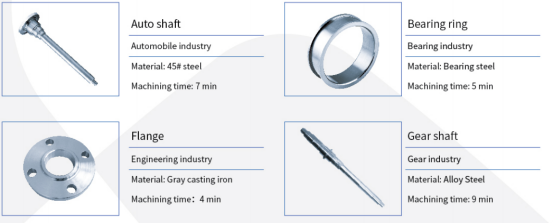

Sample

Factory Tour


Product detail pictures:

China Cy6150b Lathe Manufacturers –  SHENYANG(SMTCL) CAK 36/40/50/63 Series CNC Lathe – Maiouke detail pictures

China Cy6150b Lathe Manufacturers –  SHENYANG(SMTCL) CAK 36/40/50/63 Series CNC Lathe – Maiouke detail pictures

China Cy6150b Lathe Manufacturers –  SHENYANG(SMTCL) CAK 36/40/50/63 Series CNC Lathe – Maiouke detail pictures
