Factory Outlets Ck6185 High Precision Horizontal Metal for Sale CNC Lathe Machine

Product description:

The using range of this series of machines are wide,it can finely meet the requirements of every kind of industry,machining such as external cylinder, internal hole , slot, face and threads,it also can meet the requirements of drilling.boring broaching oil groove, keyway and so on,it is an excellent mechanical equipment for turning axial, iscal.sleeve and special type surfaces workpieces.

Send email to us Download as PDF

Product Detail

Product Tags

Now we have a skilled, efficiency team to supply high-quality service for our buyer. We often follow the tenet of customer-oriented, details-focused for Factory Outlets Ck6185 High Precision Horizontal Metal for Sale CNC Lathe Machine, Please truly feel absolutely free to call us at any time. We will reply you when we receive your inquiries. Please note that samples are available before we start our company.
Now we have a skilled, efficiency team to supply high-quality service for our buyer. We often follow the tenet of customer-oriented, details-focused for China CNC Lathe and Lathe, We attained ISO9001 which provides solid foundation for our further development. Persisting in “High quality, Prompt Delivery, Competitive Price”, we now have established long-term cooperation with clients from both overseas and domestically and get new and old clients’ high comments. It is our great honor to meet your demands. We’re sincerely expecting your attention.

Specification

Item		CWA61100
Item		CWA62100
Swing over bed	mm	1000
Swing over gap	mm	1350
Swing over carriage	mm	710
Maximun turning length	mm	1500-16000
Maximum weight of workpiece between centers	kg	4000
Width of the bed	mm	600
Spindle noses No.	ISO	A2-11
Diameter of spindle front bearing	mm	160
Diameter of spindle hole	-	100
Taper hole of spindle	-	Metric No.120
Number of spindle speeds	-	Manual 4-speed stepless
Range of spindle speeds	R/min	5-630
Main motor power	kw	AC18.5
Rapid travelling speed of motor power	kw	1.1
Section of tool shank	mm	32×32
Swing angle of tool post	-	±90°
Travel of tool post	mm	250
Travel of cross slide	mm	600
Rapid travelling speed of tool post	mm/min	900
Rapid travelling speed of transverse	mm/min	1800
Rapid travelling speed of longitudinal	mm/min	3640
Metric Threads number and range	mm	56, 1-120
Inch threads number and range	T.P.I	56,30~1/4”
Module threads number and range	mm	56,0.5-60
Diameter pitch threads number and range	D.P.	56,60-0.5
Longitudinal number and range of feeds	m/rev	64,0.08-9.6
Transverse number and range of feeds	m/rev	64,0.04-4.8
longitudinal tool post number and range of feeds	m/rev	64,0.02-2.4
Diameter of Tailstock quill	mm	120
Taper hole of tailstock quill		Morse No.6
Travel of tailstock quill	mm	250
Weight of the lathe with 3m b.c.	kg	7200
Additional weight par 1 m b.c.	kg	600
Machine overall dimension (Length x width x height) (3m)	mm	5150x 1600x 1600

Characteristic

Famous AC inverter variable speed device has been selected by the machine, the main driving has been driven by AC motor,4 step infinitely variable can be realized by sliding the gear.excellent performances of torque and power has been equipped.The operating system of the machine has been controlled by electric,hydraulic, mechanical mechanism,the carriage has functions of rapid traverse and combinating feed, easy for operating.

Standard Configuration

•4-jaw chuckφ800mm
•Center
•Lighting unit
•Cooling unit
•Special tools

Optional Configuration

•3.4-jaw chuck φ320mm,φ800mm,φ1000mm
•Steady rests φ40~φ350mm,φ50~φ470mm,φ100~φ520mm
•Roller supporting device φ180~φ520mm
•Follower rest φ30~φ120mm
•Taper turning device
•Boring device

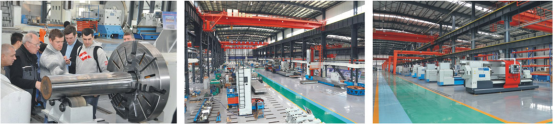

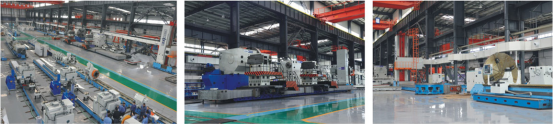

Factory Tour

Now we have a skilled, efficiency team to supply high-quality service for our buyer. We often follow the tenet of customer-oriented, details-focused for Factory Outlets Ck6185 High Precision Horizontal Metal for Sale CNC Lathe Machine, Please truly feel absolutely free to call us at any time. We will reply you when we receive your inquiries. Please note that samples are available before we start our company.
Factory Outlets China CNC Lathe and Lathe, We attained ISO9001 which provides solid foundation for our further development. Persisting in “High quality, Prompt Delivery, Competitive Price”, we now have established long-term cooperation with clients from both overseas and domestically and get new and old clients’ high comments. It is our great honor to meet your demands. We’re sincerely expecting your attention.
