factory Outlets for Metal High Qualiy Cq6230b Small Horizontal Lathe for Sale

Product description:

This series of machine tools is suitable for paper, textile, rubber, energy and other industries. It is suitable for the processing requirements of large and very large cylinder, disc and rubber roller tired parts, and can also turn a variety of threads to meet the process requirements of drilling and boring, and has a good performance to price ratio compared with similar functional heavy products.

Send email to us Download as PDF

Product Detail

Product Tags

Our firm aims to operating faithfully, serving to all of our consumers , and working in new technology and new machine continually for factory Outlets for Metal High Qualiy Cq6230b Small Horizontal Lathe for Sale, We always concertrating on developing new creative product to meet request from our clients all over the world. Join us and let’s make driving safer and funnier together!
Our firm aims to operating faithfully, serving to all of our consumers , and working in new technology and new machine continually for China Metal Lathe Machine Mini and 3 in 1 Lathe Mill Drill Machine, In the new century, we promote our enterprise spirit “United, diligent, high efficiency, innovation”, and stick to our policy”basing on quality, be enterprising, striking for first class brand”. We would take this golden opportunity to create bright future.

Specification

Item		CW61125E
Item		CW62125E
Max.swing over bed	mm	1250
Max.swing over gap	mm	1500
Max.Swing over carriage	mm	900
Maximum turning length	mm	1500~16000
Maximum weight of workpiece between centers	kg	6000、8000、10000
Width of the bed	mm	755
Spindle noses No.	ISO	A2-15
Diameter of spindle front bearing	mm	200、220
Spindle hole	mm	130、100
Taper hole of spindle	-	Metric No.140,No.120
Number of spindle speeds	-	Manual operating 21 steps
Range of spindle speeds	r/min	3.15~315
Main motor power	kW	AC22
Section of tool shank	mm	45×45
Swing angle of tool post	-	±90°
Travel of transverse tool post	mm	-
Travel of longitudinal tool post	mm	300
Travel of cross slide	mm	680
Metric threads number and range	mm	56,1~120
Inch threads number and range	T.P.1.	56,30~1/4
Module threads number and range	mm	56,0.5~60
Diametral pitch thread number and range	D.P.	56,60~0.5
Diameter of Tailstock quill	mm	160,200
Taper hole of tailstock quill	-	Metric No.80,Morse No.6
Travel of tailstock quill	mm	300
Weight of the lathe with 3m	kg	12500
Additional weight per 1m	kg	800
Machine overall dimension (length x width x height)(3m)	mm	6100x2000x2100

Characteristic

The machine tool is mainly responsible for turning large rotary diameter workpieces and is capable of turning end faces, external circles, internal holes, tapered surfaces and metric, imperial, module and diameter threads of various parts, as well as drilling and boring process requirements. The machine spindle adopts a three-support structure, its brake is hydraulically controlled, the brake is sensitive and reliable, and the button can be used to change the first level of speed without stopping. The bed is of n-shaped rib, sandwich structure, suitable width of guide rails, good rigidity, strong vibration resistance and convenient chip removal. The machine is also equipped with a separate oil pump for forced lubrication, as well as a skid plate, tool holder and bed saddle that can move separately and quickly, terminal insurance, fixed-range cutting, tailstock can be manually or motorized, the machine has the characteristics of strong rigidity, high efficiency, safety and reliability, easy operation and beautiful shape.

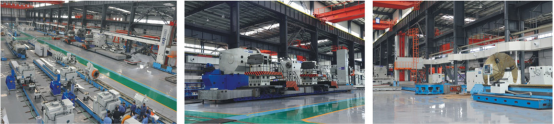

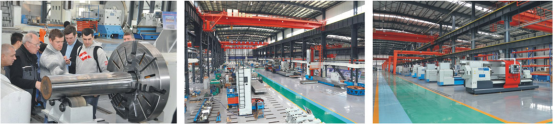

Factory Tour

Our firm aims to operating faithfully, serving to all of our consumers , and working in new technology and new machine continually for factory Outlets for Metal High Qualiy Cq6230b Small Horizontal Lathe for Sale, We always concertrating on developing new creative product to meet request from our clients all over the world. Join us and let’s make driving safer and funnier together!
factory Outlets for China Metal Lathe Machine Mini and 3 in 1 Lathe Mill Drill Machine, In the new century, we promote our enterprise spirit “United, diligent, high efficiency, innovation”, and stick to our policy”basing on quality, be enterprising, striking for first class brand”. We would take this golden opportunity to create bright future.

China Metal Lathe Machine Mini and 3 in 1 Lathe Mill Drill Machine
