Factory Selling Lathe Machine Heavy Duty Horizontal Lathe Machine

Product description:

This series of machine tools is suitable for paper, textile, rubber, energy and other industries. It is suitable for the processing requirements of large and very large cylinder, disc and rubber roller tired parts, and can also turn a variety of threads to meet the process requirements of drilling and boring, and has a good performance to price ratio compared with similar functional heavy products.

Send email to us Download as PDF

Product Detail

Product Tags

We regularly execute our spirit of ”Innovation bringing development, Highly-quality making certain subsistence, Management advertising and marketing profit, Credit score attracting buyers for Factory Selling Lathe Machine Heavy Duty Horizontal Lathe Machine, Hope we can make a more superb potential with you as a result of our attempts from the future.
We regularly execute our spirit of ”Innovation bringing development, Highly-quality making certain subsistence, Management advertising and marketing profit, Credit score attracting buyers for China Lathe Machine and Heavy Duty Lathe, To have much more enterprise. ompanions, we’ve got updated the item list and seek for optimistic co-operation. Our web-site shows the latest and complete information and facts about our goods list and company. For further acknowledge, our consultant service group in Bulgaria will reply to all of the inquiries and complications immediately. They’re going to make their finest effort to meet buyers need. Also we support the delivery of absolutely free samples. Business visits to our business in Bulgaria and factory are generally welcome for a win-win negotiation. Hope to expertise a happy company co-operation perform with you.

Specification

Item		CW61100E
Item		CW62100E
Max.swing over bed	mm	1000
Max.swing over gap	mm	1250
Max.Swing over carriage	mm	650
Maximum turning length	mm	1500~16000
Maximum weight of workpiece between centers	kg	6000、8000、10000
Width of the bed	mm	755
Spindle noses No.	ISO	A2-15
Diameter of spindle front bearing	mm	200、220
Spindle hole	mm	130、100
Taper hole of spindle	-	Metric No.140,No.120
Number of spindle speeds	-	Manual operating 21 steps
Range of spindle speeds	r/min	3.15~315
Main motor power	kW	AC22
Section of tool shank	mm	45×45
Swing angle of tool post	-	±90°
Travel of transverse tool post	mm	-
Travel of longitudinal tool post	mm	300
Travel of cross slide	mm	520
Metric threads number and range	mm	56,1~120
Inch threads number and range	T.P.1.	56,30~1/4
Module threads number and range	mm	56,0.5~60
Diametral pitch thread number and range	D.P.	56,60~0.5
Diameter of Tailstock quill	mm	160,200
Taper hole of tailstock quill	-	Metric No.80,Morse No.6
Travel of tailstock quill	mm	300
Weight of the lathe with 3m	kg	12000
Additional weight per 1m	kg	800
Machine overall dimension (length x width x height)(3m)	mm	6100x1900x2000

Characteristic

The machine tool is mainly responsible for turning large rotary diameter workpieces and is capable of turning end faces, external circles, internal holes, tapered surfaces and metric, imperial, module and diameter threads of various parts, as well as drilling and boring process requirements. The machine spindle adopts a three-support structure, its brake is hydraulically controlled, the brake is sensitive and reliable, and the button can be used to change the first level of speed without stopping. The bed is of n-shaped rib, sandwich structure, suitable width of guide rails, good rigidity, strong vibration resistance and convenient chip removal. The machine is also equipped with a separate oil pump for forced lubrication, as well as a skid plate, tool holder and bed saddle that can move separately and quickly, terminal insurance, fixed-range cutting, tailstock can be manually or motorized, the machine has the characteristics of strong rigidity, high efficiency, safety and reliability, easy operation and beautiful shape.

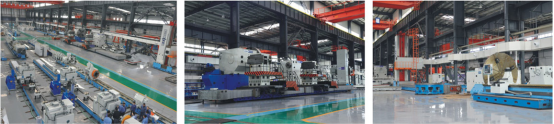

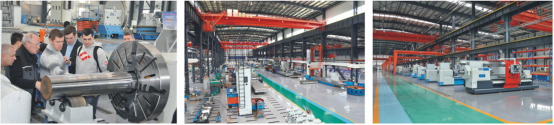

Factory Tour
