IOS Certificate Bmt Boring Holder End Face Boring Machine Holder CNC Lathe

Product description：

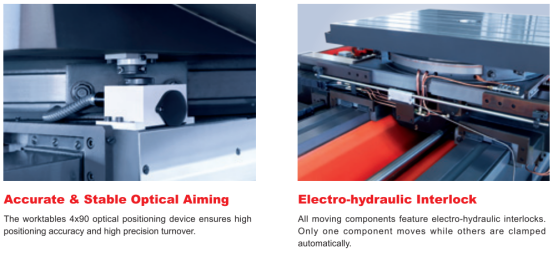

The TPX series horizontal milling and boring machines are based on a classic design, suitable for rough and finished boring, capable of milling large and box type components. They excel at inner hold boring, cylindrical turning and grooving by radial feed of facing plate. A 4×90 optical positioning device allows for machining accuracy when turning large pieces. The precision digital read out measurement systems ensures accuracy of coordinates and lineation.

Send email to us Download as PDF

Product Detail

Product Tags

To regularly increase the management program by virtue of your rule of “sincerely, good faith and quality are the base of business development”, we extensively absorb the essence of associated solutions internationally, and continuously create new solutions to satisfy the demands of customers for IOS Certificate Bmt Boring Holder End Face Boring Machine Holder CNC Lathe, By our hard get the job done, we’ve constantly been around the forefront of clean technology merchandise innovation. We are a green partner you can rely on. Call us today for more data!
To regularly increase the management program by virtue of your rule of “sincerely, good faith and quality are the base of business development”, we extensively absorb the essence of associated solutions internationally, and continuously create new solutions to satisfy the demands of customers for China CNC Lathe and CNC, With the goal of “zero defect”. To care for the environment, and social returns, care employee social responsibility as own duty. We welcome friends from all over the world to visit and guide us so that we can achieve the win-win goal together.

Specification

Item		Unit	TPX6111B/2	TPX6111B/3	TPX6113	TPX6113/2
Spindle	Diameter	mm	110	110	130	130
	Taper	-	Morse No6 (ISO7:24No50)	Morse No6 (ISO7:24No50)	Metric 80 (ISO7:24No50)	Metric 80 (ISO7:24No50)
	Max Torque	N.m	1225	1225	3136	3136
	Max Axial Thrust	N	12250	12250	31360	31360
	Speed Settings	-	22	22	24	24
	Speed Range	r/min	8-1000	8-1000	4-800	4-800
	Main Motor Power	kW	7.5	7.5	15	15
Facing Plate	Max Torque	N.m	1960	1960	4900	4900
	Diameter	mm	600	600	750	750
	Speed Range	r/min	4-200	4-200	2.5-125	2.5-125
	Speed Settings	-	18	18	18	18
Worktable	Dimensions	mm	1100×960	1250×1100	1600×1400	1800×1600
	Max Load	kg	5000	5000	8000	10000
	T-slot Size	mm	22	22	28	28
	T-slot Count	—	7	7	9	11
Machining Range	X-axis Max Travel	mm	1250	1600	1600	2000
	Y-axis Max Travel	mm	900	1200	1400	1800
	Z-axis Max Travel	mm	1400	1400	2000	2000
	W-axis Max Travel (Spindle)	mm	600	600	900	900
	U-axis Max Travel (Facing Plate Slide)	mm	180	180	250	250
	B-axis Rotary Angle	°	360	360	360	360
	Min Distance Between Spindle Centerline and Worktable	mm	0	0	0	0
Feed	Rapid Traverse	mm/min	X/Y/Z/W:2500	X/Y/Z/W:2500	X/Y/Z/W:2500	X/Y/Z/W:2500
	Feed range of axes for each spindle revolution	mm/rev	0.04-6/0.01-1.88 (X/Y/Z/W)	0.04-6/0.01-1.88 (X/Y/Z/W)	0.05-8/0.01-2 (X/Y/Z/W)	0.05-8/0.01-2 (X/Y/Z/W)
	Speed Range (X)	mm/min	-	-	-	-
Accuracy	Linear Measurement Reading Accuracy (X/Y/Z-axis)	mm	0.005	0.005	0.005	0.005
Accuracy	Linear Measurement Reading Accuracy (B-axis)	°	0.001	0.001	0.001	0.001
General Specs	Dimensions (L×W×H)	mm	4910×2870×2750	5028×3359×3079	6995×3647×3442	7030×4665×3800
General Specs	Machine Weight	kg	13000	14000	24000	28000

Characteristic

To regularly increase the management program by virtue of your rule of “sincerely, good faith and quality are the base of business development”, we extensively absorb the essence of associated solutions internationally, and continuously create new solutions to satisfy the demands of customers for IOS Certificate Bmt Boring Holder End Face Boring Machine Holder CNC Lathe, By our hard get the job done, we’ve constantly been around the forefront of clean technology merchandise innovation. We are a green partner you can rely on. Call us today for more data!
IOS Certificate China CNC Lathe and CNC, With the goal of “zero defect”. To care for the environment, and social returns, care employee social responsibility as own duty. We welcome friends from all over the world to visit and guide us so that we can achieve the win-win goal together.
