Product description:

T5Q series horizontal CNC lathe, which combines the intelligent control technique and advanced manufacturing technique, has high precision, high efficiency, and high cutting rigidity. It utilizes finite element analysis software for optimization and design, analyzes the distribution of stress points, reduces deformation of the components, and realizes the optimal structure of the whole machine. The main casting components were made of high strength cast iron, which can guarantee the minimized vibration during turning and at the same time improve the machining precision and cutting stability.


Product Detail

Product Tags

We often stick to the basic principle “Quality 1st, Prestige Supreme”. We are fully committed to giving our shoppers with competitively priced excellent products and solutions, prompt delivery and skilled provider for Manufacturing Companies for Taiwan High-Precision Line Rail Cnk420/Cnk500/Cnk520 Slant Bed and Linear Guide Way CNC Lathe CNC Machine, “Change with the much better!” is our slogan, which means “A greater globe is before us, so let’s take pleasure in it!” Change for that better! Are you completely ready?
We often stick to the basic principle “Quality 1st, Prestige Supreme”. We are fully committed to giving our shoppers with competitively priced excellent products and solutions, prompt delivery and skilled provider for China CNC Machine and CNC Lathe, Taking the core concept of “to be the Responsible”. We’ll redound up on society for high quality merchandise and good service. We will initiative to participate in international competition to be a first- class manufacturer of this product in the world.

Specification

Item

Unit

T5.2- 500Q

T5.2-1000Q

Machining range

Max turning diameter

mm

Φ360

Φ360

Max turning length

mm

500

1000

Max swing diameter over bed

mm

Φ560

Φ560

Max swing diameter over slide

mm

Φ350

Φ350

Spindle

Spindle nose type

A2-6

A2-6

Diameter of front bearing

mm

110

110

The taper of front end of spindle, taper hole

1:20;Φ80

1:20;Φ80

Spindle hole diameter

mm

Φ67

Φ67

Max diameter of bar

mm

Φ50

Φ50

Diameter of chuck

inch

8

8

Max spindle speed

r/min

4500

4500

Spindle rated torque

Nm

144 (2000r/min)

144 (2000r/min)

Max spindle torque

Nm

176 (2000r/min)

176(2000r/min)

Main motor output power

Continuous/30 minutes

kW

30/37

30/37

Axes

X/Z axis rapid traverse

m/min

30

30

X axis travel

mm

200

200

Z axis travel

mm

560

1050

Tailstock

Tailstock body travel

mm

500 (Servo drive)

900 (Saddle draging)

Tailstock taper

Morse

MT-5

MT-4

Turret

Turret mode

Horizontal servo turret with 8-position

Horizontal servo turret with 8-position

Center height of turret

mm

80

80

Repeatability of turret indexing

Sec.

±1.6

±1.6

Choosing too at the nearest distance

-

Yes

Yes

Face end tool holder (25 X 25)

-

1

1

Boring tool holder (Φ40)

-

3

3

Reducer (032/025/020)

mm

1 each

1 each

Others

The height from spindle center to the bottom of the bed

mm

1015

1015

Machine net weight

kg

4200

4750

Power capacity

kVA

55

55

Overall machine dimension (L×W×H)

mm

2600×1890×1900

3570×1890×1900

Optional: Control system,Guide-way,Spindle,Turret,Chip removal system,Tailstock,Chunk,Hydraulic station,Tool detection , Automatic line configuration,Scale,Water gun,Gas gun

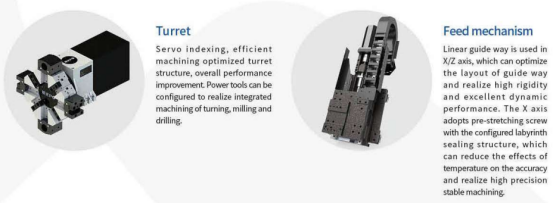

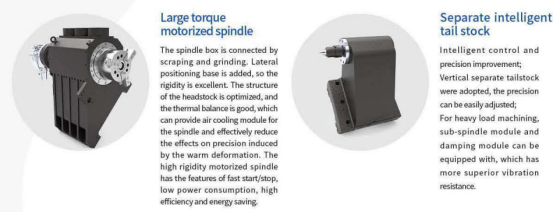

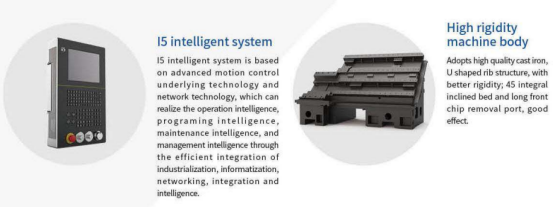

Characteristic

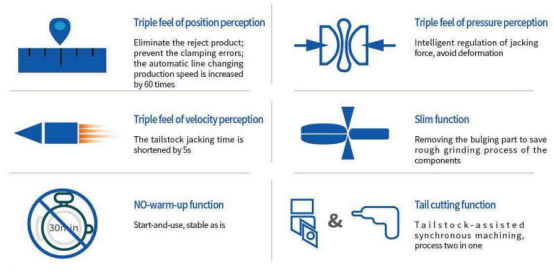

Function introduction

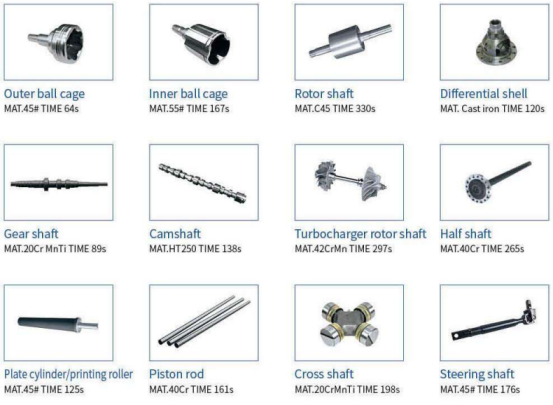

Typical machining components
