NINGJIANG CNC Gear Hobbing Machine YK3608 YKJ3608
Specification
|
Item |
Unit |
YK3608 |
YKJ3608 |
| Max. working diameter | mm | Φ80 | Φ80 |
| Max. working module | mm | 2 | 1.5 |
| Workpiece spindle rpm | r/min | 400(600) | 400 |
| Hob spindle rpm | r/min | 2000 | 2000 |
| Hob shifting length | mm | 60 | 60 |
| Z-Slide travel | mm | 150 | 200 |
| Hob head swing angle | ° | ±40 | ±45 |
| Min. tooth number | - | 3 | 3 |
| Max. hob dia. X length | mm | Φ63×60 | Φ63×60 |
| Total power | KVA | 10 | 10 |
| Over all dimension (L/W/H) | mm | 2375×1880×2100 | 1650×1600×1900 |
| Machine weight | T | 3 | 3 |
Characteristic
● FANUC Oi-MF/H control system
● 5 axes with b, c, x. Z-axis been simultaneously controlled.
● Direct coupling servo motor for B-axis.
● Servo driven for C-axis with high precision gear pair to achieve high torque.
● Servo control hob shifting(Y-axis)to reduce hob wear.
● Self-developed communication programming software make the machine operation more easy.

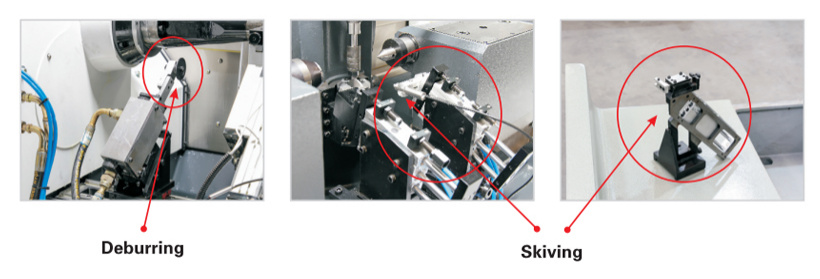

● Optional skiving accessory for 2nd hobbing of hardened gear.
● YK3608/1 with large helix angle designed specially for finishing tool gear production.
● Suitable for spur gear, helix gear, worm and spline.

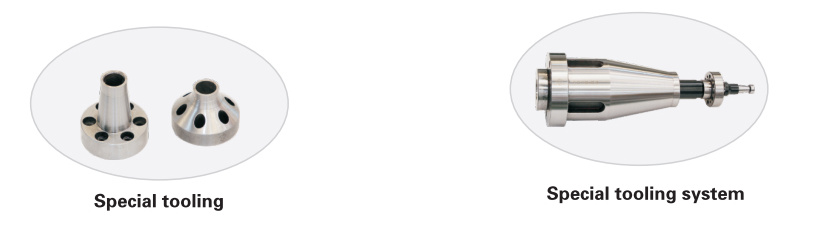

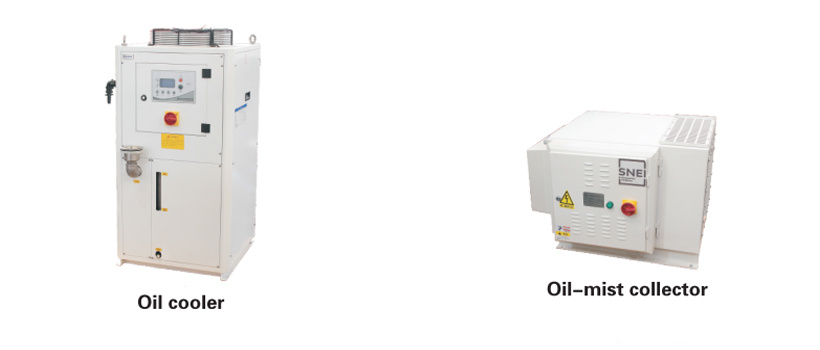

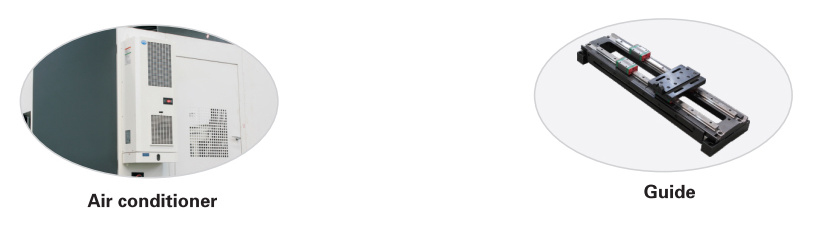

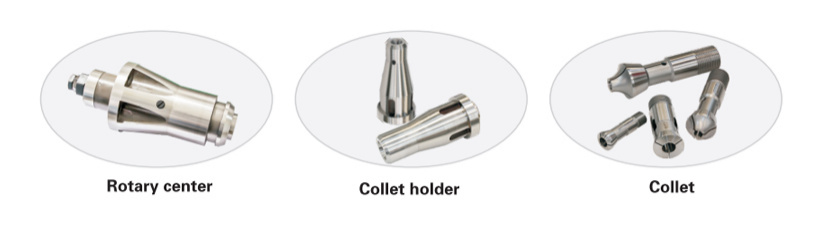

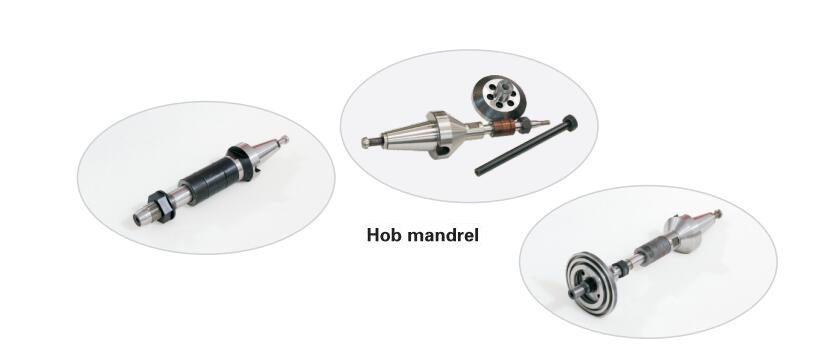

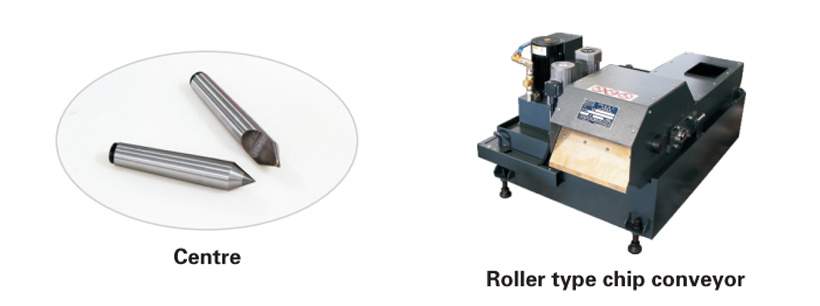

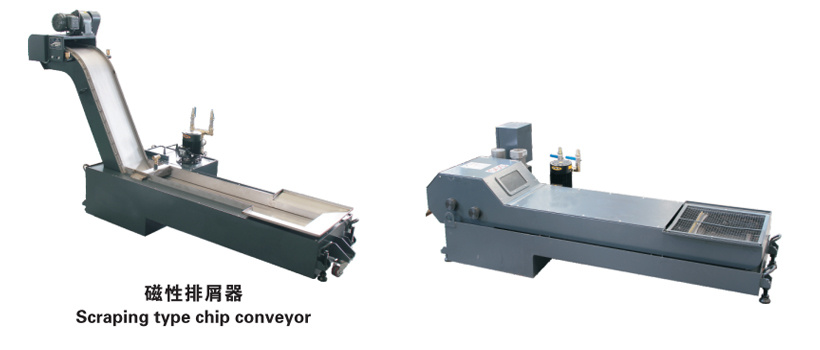

Gear hobbing machine accessories：
