OEM Supply C6251 Precision Horizontal Heavy Duty Metal Lathe

Product description:

This series of machine tools is suitable for paper, textile, rubber, energy and other industries. It is suitable for the processing requirements of large and very large cylinder, disc and rubber roller tired parts, and can also turn a variety of threads to meet the process requirements of drilling and boring, and has a good performance to price ratio compared with similar functional heavy products.

Send email to us Download as PDF

Product Detail

Product Tags

Our rewards are lessen selling prices,dynamic sales team,specialized QC,solid factories,high quality services for OEM Supply C6251 Precision Horizontal Heavy Duty Metal Lathe, We cordially welcome consumers from at your home and abroad to affix us and cooperate with us to take pleasure in a greater long term.
Our rewards are lessen selling prices,dynamic sales team,specialized QC,solid factories,high quality services for China High Speed Lathe and Lathe, You can always find the merchandise you need in our company! Welcome to inquire us about our product and anything we know and we can help in auto spare parts. We’ve been looking forward to work with you for a win-win situation.

Specification

Item		CW61160
Item		CW62160
Max.swing over bed	mm	1600
Max.swing over gap	mm	2110
Max.Swing over carriage	mm	1250
Maximum turning length	mm	1500~16000
Maximum weight of workpiece between centers	kg	6000,8000,10000
Width of the bed	mm	970
Spindle noses No.	ISO	A2-15
Diameter of spindle front bearing	mm	200,220
Spindle hole	mm	130,100
Taper hole of spindle	-	Metric No.140,No.120
Number of spindle speeds	-	Manual operating 21 steps
Range of spindle speeds	r/min	2.5~250
Main motor power	kW	AC22
Section of tool shank	mm	45×45
Swing angle of tool post	-	±90。
Travel of transverse tool post	mm	200
Travel of longitudinal tool post	mm	400
Travel of cross slide	mm	880
Metric threads number and range	mm	56,1~120
Inch threads number and range	T.P.1.	56,30~1/4
Module threads number and range	mm	56,0.5~60
Diametral pitch thread number and range	D.P.	56,60~0.5
Diameter of Tailstock quill	mm	160,200
Taper hole of tailstock quill	-	Metric No.80,Morse No.6
Travel of tailstock quill	mm	300
Weight of the lathe with 3m	kg	15000
Additional weight per 1m	kg	1000
Machine overall dimension (length x width x height)(3m)	mm	6360×2060×2500

Characteristic

The machine tool is mainly responsible for turning large rotary diameter workpieces and is capable of turning end faces, external circles, internal holes, tapered surfaces and metric, imperial, module and diameter threads of various parts, as well as drilling and boring process requirements. The machine spindle adopts a three-support structure, its brake is hydraulically controlled, the brake is sensitive and reliable, and the button can be used to change the first level of speed without stopping. The bed is of n-shaped rib, sandwich structure, suitable width of guide rails, good rigidity, strong vibration resistance and convenient chip removal. The machine is also equipped with a separate oil pump for forced lubrication, as well as a skid plate, tool holder and bed saddle that can move separately and quickly, terminal insurance, fixed-range cutting, tailstock can be manually or motorized, the machine has the characteristics of strong rigidity, high efficiency, safety and reliability, easy operation and beautiful shape.

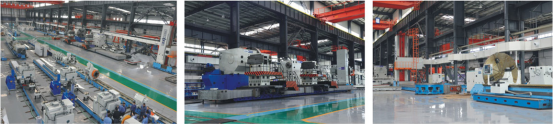

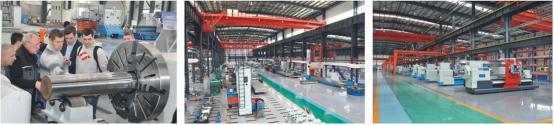

Factory Tour
