Quots for Heavy Duty Horizontal Lathe Machine with Multi Purpose High Precision

Product description:

This series of machine tools is suitable for paper, textile, rubber, energy and other industries. It is suitable for the processing requirements of large and very large cylinder, disc and rubber roller tired parts, and can also turn a variety of threads to meet the process requirements of drilling and boring, and has a good performance to price ratio compared with similar functional heavy products.

Send email to us Download as PDF

Product Detail

Product Tags

We emphasize progress and introduce new solutions into the market each year for Quots for Heavy Duty Horizontal Lathe Machine with Multi Purpose High Precision, The continual availability of high grade solutions in combination with our excellent pre- and after-sales services ensures strong competitiveness in an increasingly globalized market place.
We emphasize progress and introduce new solutions into the market each year for China Brake Lathe and Lathe Machine Tools, We take measure at any expense to achieve essentially the most up-to-date equipment and approaches. The packing of nominated brand is our a further distinguishing feature. The items to assure years of trouble-free service has attracted a great deal customers. The solutions are obtainable in improved designs and richer assortment, they’re created scientifically of purely raw supplies. It readily available in a variety of designs and specifications for your selection. The most recent kinds are a great deal better than the preceding one particular and they are quite popular with lots of prospects.

Specification

Item		CW61100E
Item		CW62100E
Max.swing over bed	mm	1000
Max.swing over gap	mm	1250
Max.Swing over carriage	mm	650
Maximum turning length	mm	1500~16000
Maximum weight of workpiece between centers	kg	6000、8000、10000
Width of the bed	mm	755
Spindle noses No.	ISO	A2-15
Diameter of spindle front bearing	mm	200、220
Spindle hole	mm	130、100
Taper hole of spindle	-	Metric No.140,No.120
Number of spindle speeds	-	Manual operating 21 steps
Range of spindle speeds	r/min	3.15~315
Main motor power	kW	AC22
Section of tool shank	mm	45×45
Swing angle of tool post	-	±90°
Travel of transverse tool post	mm	-
Travel of longitudinal tool post	mm	300
Travel of cross slide	mm	520
Metric threads number and range	mm	56,1~120
Inch threads number and range	T.P.1.	56,30~1/4
Module threads number and range	mm	56,0.5~60
Diametral pitch thread number and range	D.P.	56,60~0.5
Diameter of Tailstock quill	mm	160,200
Taper hole of tailstock quill	-	Metric No.80,Morse No.6
Travel of tailstock quill	mm	300
Weight of the lathe with 3m	kg	12000
Additional weight per 1m	kg	800
Machine overall dimension (length x width x height)(3m)	mm	6100x1900x2000

Characteristic

The machine tool is mainly responsible for turning large rotary diameter workpieces and is capable of turning end faces, external circles, internal holes, tapered surfaces and metric, imperial, module and diameter threads of various parts, as well as drilling and boring process requirements. The machine spindle adopts a three-support structure, its brake is hydraulically controlled, the brake is sensitive and reliable, and the button can be used to change the first level of speed without stopping. The bed is of n-shaped rib, sandwich structure, suitable width of guide rails, good rigidity, strong vibration resistance and convenient chip removal. The machine is also equipped with a separate oil pump for forced lubrication, as well as a skid plate, tool holder and bed saddle that can move separately and quickly, terminal insurance, fixed-range cutting, tailstock can be manually or motorized, the machine has the characteristics of strong rigidity, high efficiency, safety and reliability, easy operation and beautiful shape.

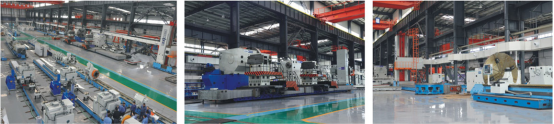

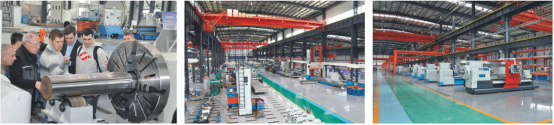

Factory Tour
