SHENYANG(SMTCL) Vertical Machining Center VMC 850Q

Product description:
Q series machine tools is a new generation general vertical machining center launched by Genertec SMTCL through independent R&D and the combination of many years’ design and manufacture experience. Through professional design and using analytical software for scientific and rational analysis/optimization, as well as the validation and improvement by using advanced manufacturing/testing techniques, this product indicates superior machinability, which can satisfy the drilling and milling requirements of different components.

Send email to us Download as PDF

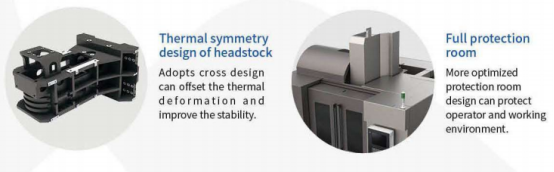

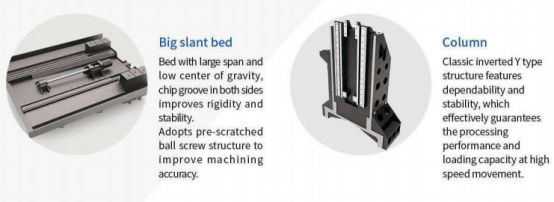

Product Detail

Product Tags

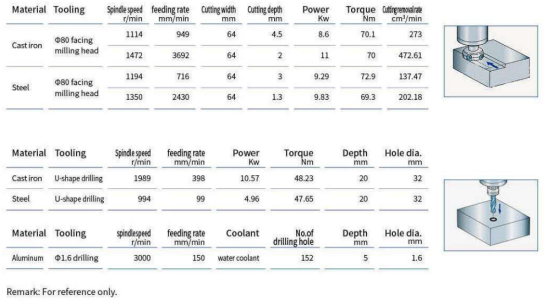

Specification

Item		Unit	VMC 850Q
Table
Table size		mm	1000×500
Max.allowed loading		kg	600
T slot size		mm×N	18×5
Machining range
X axis travel		mm	850
Y axis travel		mm	500
Z axis travel		mm	540
Distence between spindle nose to table	Max.	mm	660
	Min.	mm	120
Distence between spindle center to guideway surface		mm	640
Spindle
Taper (7:24)		-	BT40
Speed		r/min	10000
Torque		N.m	35.8/70 (S2 15Minutes)
Main motor power		kW	7.5/11
Drive type		-	Synchrono us belt
Tooling
Tool holder		-	MAS 403 BT40
Pull stud		-	MAS 403 40BT- 1
Feed
Rapid feed	X axis	m/min	48
	Y axis	m/min	48
	Z axis	m/min	48
Motor power(XYZ)		kW	1.8/1.8/3
Motor torque(XYZ)		Nm	11/11/20
Feeding speed		mm/min	1-20000

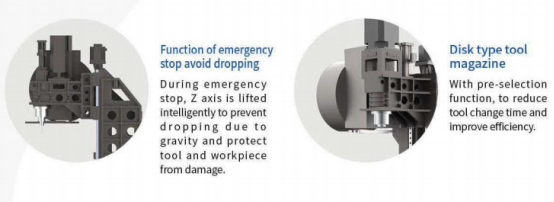

Toot Magazine
Type		-	Robot
Tool collection		-	Nearest tool selection
Magazine capacity		-	24
Max.tool length		mm	300
Max.tool weight		kg	7
Max.tool disk dia.	Full	mm	Φ80
	Nearby	mm	Φ150
Tool change time		s	2.5
Distence between table to ground		mm	880
Machine weight		kg	5100
Electricity capacity		KVA	18
Overall Dimensions (L×W×H)		mm	2400×2560×2700 (without conveyor)
