YUNNAN Manual Lathe – SHENYANG(SMTCL) VMC Q Series Vertical Machining Center – Maiouke Detail:

Specification

Item

Unit

VMC 850Q

VMC 1000Q

VMC 1100Q

Table

Table size

mm

1000×500

1150×500

1300×610

Max.allowed loading

kg

600

600

1000

T slot size

mm×N

18×5

18×5

18×5

Machining range

X axis travel

mm

850

1000

1100

Y axis travel

mm

500

500

620

Z axis travel

mm

540

540

600

Distence between
spindle nose to table

Max.

mm

660

660

720

Min.

mm

120

120

120

Distence between spindle center to guideway surface

mm

640

640

743

Spindle

Taper (7:24)

-

BT40

BT40

BT40

Speed

r/min

10000

10000

10000

Torque

N.m

35.8/70 (S2 15Minutes)

35.8/70 (S2 15Minutes)

35.8/70 (S2 15 Minutes)

Main motor power

kW

7.5/11

7.5/11

7.5/11

Drive type

-

Synchrono us belt

Synchrono us belt

Synchrono us belt

Tooling

Tool holder

-

MAS 403 BT40

MAS 403 BT40

MAS 403 BT40

Pull stud

-

MAS 403 40BT- 1

MAS 403 40BT- 1

MAS 403 40BT- 1

Feed

Rapid feed

X axis

m/min

48

48

48

Y axis

m/min

48

48

48

Z axis

m/min

48

48

48

Motor power(XYZ)

kW

1.8/1.8/3

1.8/1.8/3

3/3/3

Motor torque(XYZ)

Nm

11/11/20

11/11/20

20/20/20

Feeding speed

mm/min

1-20000

1-20000

1-20000

Toot Magazine

Type

-

Robot

Robot

Robot

Tool collection

-

Nearest tool selection

Nearest tool selection

Nearest tool selection

Magazine capacity

-

24

24

24

Max.tool length

mm

300

300

300

Max.tool weight

kg

7

7

7

Max.tool disk dia.

Full

mm

Φ80

Φ80

Φ80

Nearby

mm

Φ150

Φ150

Φ150

Tool change time

s

2.5

2.5

2.5

Distence between table to ground

mm

880

880

950

Machine weight

kg

5100

5400

6200

Electricity capacity

KVA

18

18

25

Overall Dimensions (L×W×H)

mm

2400×2560×2700 (without conveyor)

2700× 2560 × 2700 (without conveyor)

2940× 3450×3050 (without conveyor)

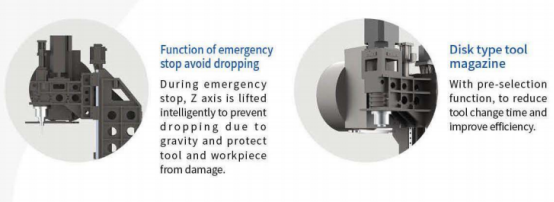

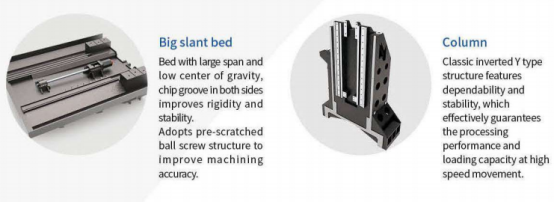

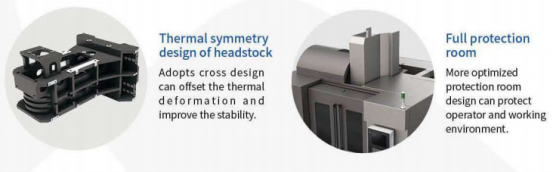

Characteristic

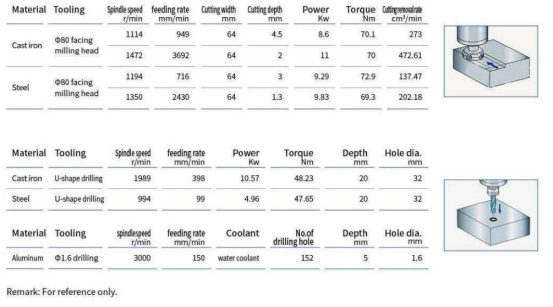

Samples

Factory Tour


Product detail pictures:

YUNNAN Manual Lathe –  SHENYANG(SMTCL) VMC Q Series Vertical Machining Center – Maiouke detail pictures

YUNNAN Manual Lathe –  SHENYANG(SMTCL) VMC Q Series Vertical Machining Center – Maiouke detail pictures

YUNNAN Manual Lathe –  SHENYANG(SMTCL) VMC Q Series Vertical Machining Center – Maiouke detail pictures
